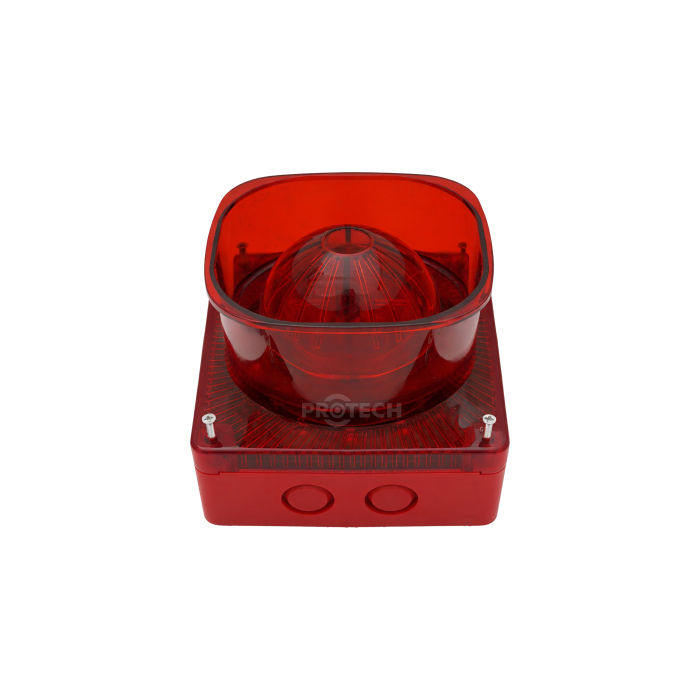

Fire Strobe Sounder

This product is a conventional type sound and light alarm, sound and light for short. Is an automatic fire alarm system output devices, mainly througn the alarm will sound and flash signal, suggesting that people fire.

Technical Specifications

• ​Product Name: Fire Strobe Sounder
• ​Model No.: FA-414
• ​Operating Voltage: DC 12V～24V
• ​Working Current: ≤60mA
• ​Flash Periode: 120 times/min
• ​Sound Pressure Level: ≥ 105dB
• ​Temperature Range: -10°C ~ +55°C
• ​Humidity Range: 0%～95% RH
• ​Type of Sounder Alarm: 8 types
• ​LED Color: Red
• ​Service Life: 10 years
• ​Shell Material: Hard Plastic Shell
• ​Color: Red
• ​Application Environment: Indoor
• ​Size: 128.3mm x 122mm x 104.6mm
• ​Weight: 0.37kg

​Working Principle

 by DC 24V electrical signal to the conventional type of sound and light alarms powered, it sounds an alarm buzzer and flashing lights flash issue.

​Function

​Provides effective audible and visual warnings during fire emergencies to ensure the timely and safe evacuation of personnel.

​Wiring

• ​SUPPLY+ (Control Input +): DC 24V Positive (+)
• ​SUPPLY- (Control Input -): DC 24V Negative (Gnd / -)
